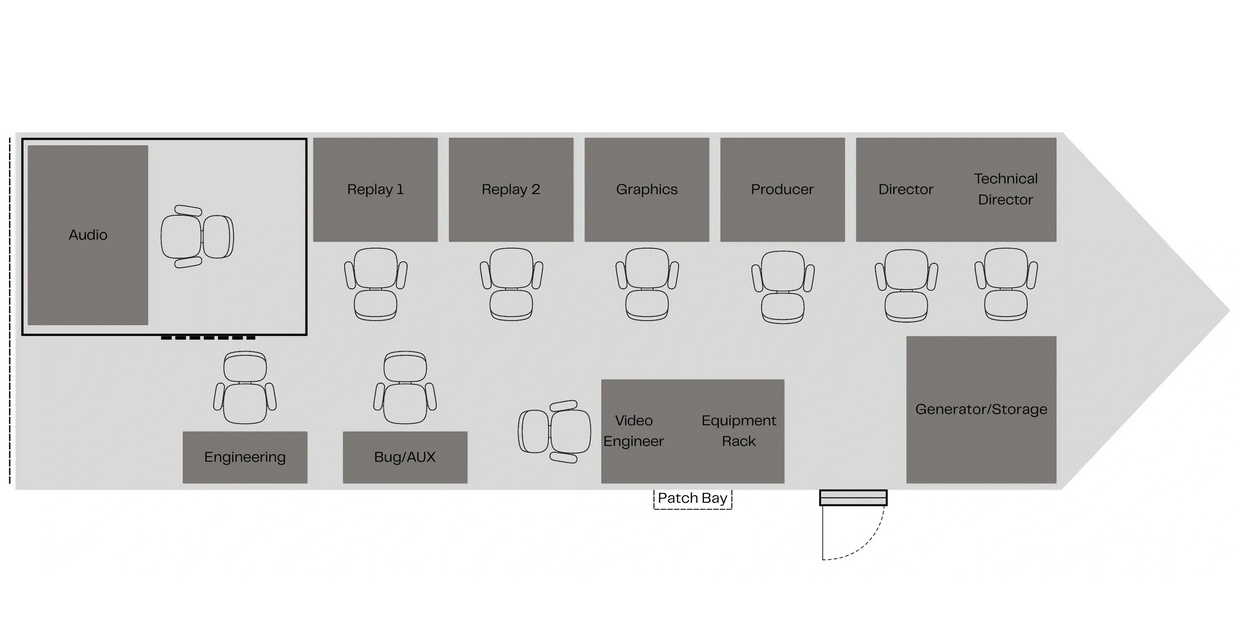

Layout

---

Ross Carbonite Ultra 3 M/E Switcher 24 Input / 14 Output

Ross Carbonite Black Plus 36 Input 2 M/E Switcher

Ross Xpression 11.5 (4 Channels) w/ Datalinq Server

*NewTek 3Play 4800 - 8 Channel Input - 2 Channel Output

Blackmagic Design 40x40 Video Router

ProPresenter Video/Image Playback

*EVS or DreamCatcher available on request

*(5) Sony HDC-4300 SMPTE Cameras

*(2) 90x Lenses, (2) 40x Lenses, (2) 24x Lenses

(4) Panasonic AG-CX350 4K Camcorders 32x

(2) Panasonic AW-UN70 PTZ Cameras

(6) Marshall POV Cameras

*Additional cameras and lenses available on request

Allen & Heath SQ-5 w/ Dante 64x64 Card

(3) Studio Technologies Model 232 Announcer’s Consoles

(2) Studio Technologies Model 381 On-Air Beltpacks

Allen & Heath DT168 Dante Stagebox

(3) Sennheiser HMD 27 Announcer's Headsets

(6) Sennheiser MKH 416 Shotgun Microphones

(4) Shure ULXD Handheld and Bodypacks

RTS ODIN Intercom w/ Desk KPs

(10) Clear-Com 1ch Wired Beltpacks

(5) Clear-Com FreeSpeak Wireless Beltpacks

(4) 12 Channel ST-ST 500ft Fiber Reel

(2) 12 Channel ST-ST 1000ft Fiber Reel

Assorted SMPTE Camera Cables

Netgear AV-Line Network Switches

(4) Aja FiDO-4T / FiDO-4R SDI / Fiber Converters

(8) BlackMagic Design 12G SDI / Fiber BiDirectional Converters

RS232 to IP Converters for Scoring Data

(4) BlackMagic Design HyperDeck Studio 4K Pro

(3) BlackMagic Design HyperDeck Studio HD Mini

(2) Teradek Prism Flex Mk II Encoders

LiveU Solo Pro HDMI/SDI

28ft Long x 8.5ft High x 7ft Wide

100 Amp Series 15 or 16 Cam-locks

Built-in backup generator

(3) 15,000 BTU Air Conditioners

(4) 50 inch Routable TV Multiviewers

43 inch Routable TV Multiviewer

Starlink Internet with Peplink Bonded Cell Backup
